Mobil 1™ Synthetic Grease

High performance automotive grease

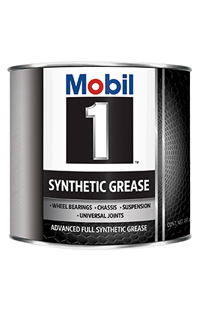

Mobil 1™ Synthetic Grease

Excellent protection against rust and corrosion

Mobil 1™ Synthetic Grease, the official automotive grease of NASCAR, is an advanced full synthetic grease formulated with a proprietary blend of high-performance synthetic base stocks and a lithium complex soap thickener. The thickener system provides a high dropping point, while additives impart excellent extreme-pressure properties and resistance to water wash, rust and corrosion. The proprietary blend of high-performance synthetic base stocks used in Mobil 1 Synthetic Grease gives reliable lubrication over wide temperature ranges -50 C (-58 F) to 246 C (475 F). Outstanding structural stability coupled with high performance synthetic base stocks make Mobil 1 Synthetic Grease an outstanding all-purpose automotive grease.

Features and Benefits

Features

Advantages and Potential Benefits

All-Purpose Automotive Grease

• Reliable lubrication over wide temperature range -50 C (-58 F) to 246 C (475 F)

• 75 % reduction in torque need at -40 F (-40 C) 1

Wide Operating Temperature Range

-40C (-40F) to 150C (302 F)

Excellent Resistance to Rust and Corrosion

• Longer life of bearings and chassis lube points when exposed to corrosive environments

Outstanding Structural Stability

• Provides effective lubrication over extended periods of time

Exceptional wear protection under heavy loads

• 20 % Improved wear protection 2.

• Provides bearing protection while cornering and other conditions where bearings temporarily experience heavy loads.

Excellent resistance to water wash

• 40% better resistance to water wash out3 from heavy rain storms or exposure to high amounts of water.

Improved grease bearing life

• 3X improvement in grease bearing life4



Disclaimers:
1Based on ASTM D4693 vs mineral oil grease
2Based on ASTM D2266 vs mineral oil grease
3Based on ASTM D1264 vs mineral oil grease
4Based on DIN 51821 vs mineral oil grease
NASCAR® is a registered trademark of the National Association for Stock Car Auto Racing, Inc.


Applications

Mobil 1™ Synthetic Grease meets the requirements of the National Lubricating Grease institute (NLGI) performance classification GC-LB. It is recommended for automotive applications at both high and low temperatures. It is particularly suited for applications such as disc brake wheel bearings and ball and steering joints. It will provide outstanding bearing protection under heavy loads at any highway speed, and where moisture or condensation is a factor.



Specifications and Approvals

This product meets or exceeds the requirements of:

NLGI GC-LB



Properties and Specifications

Property



Grade

NLGI 2

Thickener Type

Lithium Complex

Soap Free Alkali, as Lithium Hydroxide, wt%, M 219

Lithium complex

Color, Visual

Red

Penetration, 60X, 0.1 mm, ASTM D217

280

Penetration, Worked, 100,000X, 0.1 mm, ASTM D217

305

Dropping Point, C(F), ASTM D2265

288 (550 F)

Base Oil Viscosity of Greases @ 40 C, mm2/s, AMS 1697

220

Base Oil Viscosity of Greases @ 100 C, mm2/s, AMS 1700

23.8

Timken, Minimum OK Load, lb, ASTM D2509

45

Four-Ball Extreme Pressure Test, Load Wear Index, kgf, ASTM D2596

45

Four-Ball Wear Test, Scar Diameter, 40 kg, 1200 rpm, 1 h, 75 C, mm, ASTM D2266

0.40

Four-Ball Extreme Pressure Test, Minimum Weld, kgf, ASTM D2596

250

Corrosion Preventive Properties, Rating, ASTM D1743

PASS

Water Washout, Loss @ 79 C, wt%, ASTM D1264

6



Health and safety

Health and Safety recommendations for this product can be found on the Material Safety Data Sheet (MSDS) @ http://www.msds.exxonmobil.com/psims/psims.aspx
